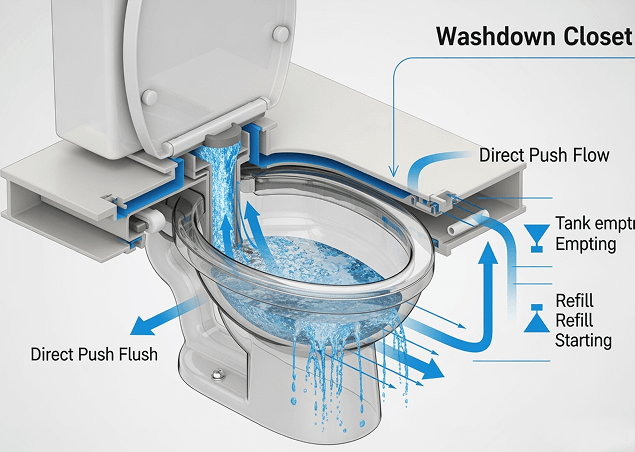

A washdown flushing system operates by using gravity and a strong surge of water from the tank to drive waste out of the toilet bowl. Unlike siphonic systems that depend on vacuum suction, the washdown mechanism utilizes the direct force of water to push waste through a broad trapway into the drain. Its wider outlet design makes it efficient and less likely to experience clogging.
Step - 1
You press the flush lever/button; the flush valve opens.
Step - 2
Water from the cistern flows directly into the bowl, often through rim jets or via a wide cascade, depending on design. The force of the water is what does the main work.
Step - 3
Because bowl bottom and outlet are wide, water’s downward push pushes the waste through the outlet into the trapway. There’s minimal suction or vortex; mostly direct force of water + gravity.
Step - 4
The waste is carried out through the trap/exit. Because the trapway is short and wide, there’s less resistance; this helps avoid clogging (if size adequate).
Step - 5
Once the cistern empties or flush valve closes, water in bowl drains somewhat, and refill valve restores water in cistern and bowl to the normal level so toilet is ready for next flush.
